Duct LineⅡ, Automatic Rectangular Duct Blanking System

Rectangular Duct LineⅡ

Automatic rectangular duct blanking systems lower labor costs and are used to precisely cut material to the desired length, thus completing material preparation segments. Compared to a manual measuring and cutting process, our automated production line is more precise, providing a cleaner cut that saves labor and increases productivity.

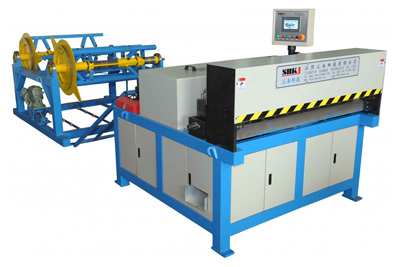

The duct line II consists of the material compartment, duct beader, sheet shearing machine, and angle pressing machine.

Advantages:

All electronics are computer controlled, and a close loop system is used for production stability and precision. The maximum working speed is10m/min, and the length tolerance is ±0.5mm, with a diagonal line tolerance of ± 0.8mm.

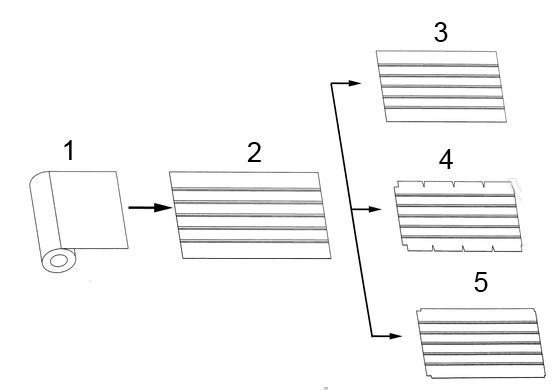

Workflow:
Rectangular Duct LineⅡ
  • Uncoiling
  • Leveling&Bending Grooving
  • Customized Cut-off
  • Notched "V"and "口" and Shear for C&S or TDF Flange
  • Notched "口" and Shear for C&S or TDF Flange
Parameter:
Model
SBAL-II-1250
SBAL-II-1550
Thickness 0.5-2.0mm 0.5-2.0mm
Max. width 1250mm 1550mm
Max. feeding speed 18m/min 18m/min
Max. load of decoiler 8000kg 8000kg
Power 9.2kW 9.2kW
Machine weight 3000kg 3500kg
Dimension for duct forming machine 1900x1800x1400mm 1900x2100x1400mm
Decoiler 2300x1750x1650mm 2300x2050x1650mm
Voltage 380V/3-phase/50Hz
