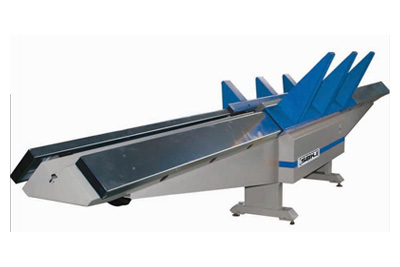

Duct Zipper
Our duct zipper model can press and form the junction between rectangular ducts, the workable range for material sheet of SBHF-1 is 0.5-1mm, SBHF- Ⅱ can work on material with thickness up to 1-1.25mm.
Parameter:| type | SBHF-Ⅰ | SBHF-Ⅱ | |
| thickness | 0.5-1mm | 1-1.25mm | |
| min duct diameter | 100mm | 200mm | |
| max speed | 15m/min | 15m/min | |
| support height | 700mm | 700mm | |
| support length | 1500mm | 1500mm | |
| number of support arms | 2×3 | 2×3 | |
| working height | 800mm | 800mm | |
| dimension | length | 5350mm | 5350mm |
| width | 1000mm | 1000mm | |
| drive power max | 5.5Kw | 5.5Kw | |
| weight | 710Kg | 710Kg | |
